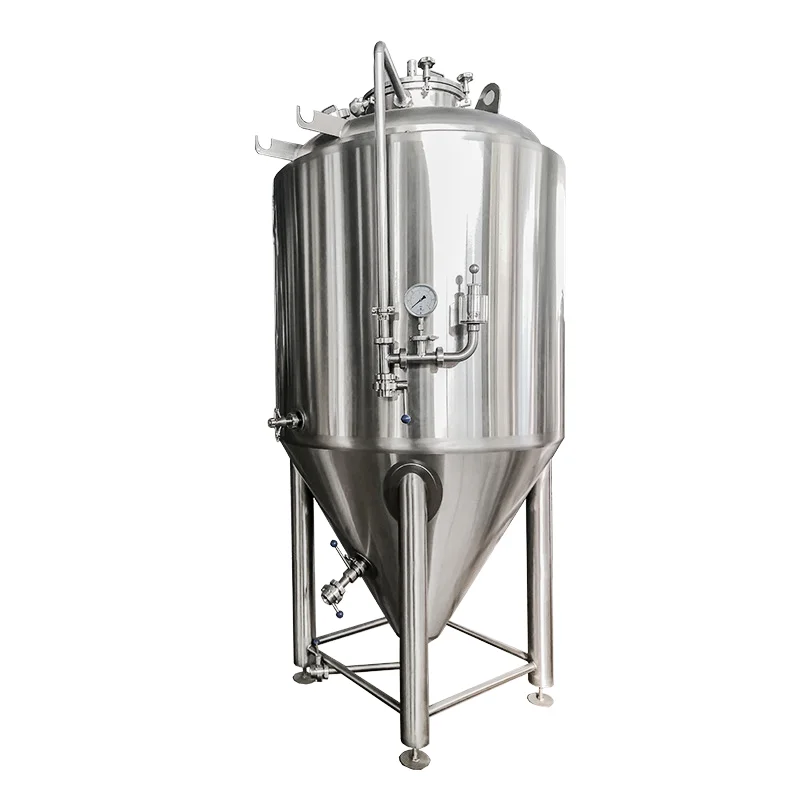

1000L Fermentation Tank
Engineered for Growing Craft Breweries
The 1000L Fermentation Tank from Tonsen is purpose-built for scaling craft breweries, brewpubs, and small commercial beer production facilities. Designed with hygienic performance, temperature accuracy, and production flexibility in mind, this 1000L conical fermenter is an essential addition to any expanding brewhouse.
Constructed from sanitary-grade SUS304 or SUS316L stainless steel, the tank features a fully jacketed body and cone for efficient temperature regulation, an easy-to-clean internal polish, and precision fittings to support both ale and lager fermentation under pressure.
1000L Fermentation Tank – Professional Stainless Steel Fermenter for Mid-Scale Brewing
Technical Specifications
Effective Volume: 1000L / 10HL
Material: Food-grade stainless steel (SUS304/SUS316L)
Design: 60° conical bottom for optimal yeast removal
Pressure Rating: 2 bar working / 3 bar test pressure
Cooling Zones: Independent glycol jackets (cylinder + cone)
Insulation: 100mm polyurethane insulation
Surface Finish: Internal Ra <0.6μm, mirror-polished welds
Manway: Top or side-mounted shadowless manhole
1000L Fermentation Tank Features
1. Optimized Fermentation Performance
Full-sized CIP arm with spray ball for internal cleaning
RTD thermometer port, PRV, and spunding valve
Tri-clamp connections for CO₂ inlet, sampling, and carbonating
2. Durable, Hygienic, and Pressure-Rated
Sanitary welds with passivation treatment
Conical bottom with butterfly valve and dump port
Optional carbonation stone, level indicator, and yeast collection
3. Ideal for Scaling Production
Matches batch sizes from 5–10 bbl systems
Supports both single and double batch fermentation
Easily integrated into modular brewhouse systems
Versatile Brewing Applications
Lagering and conditioning of beer
Pressure fermentation for hazy IPAs and session ales
Cold crashing and yeast harvesting
Pilot testing for new seasonal recipes
Tonsen Advantage – Built for Brewers Worldwide
Over 15 years in brewery equipment manufacturing
Tanks exported to 50+ countries worldwide
Custom-built to your space and process specs
ASME/PED/CE certified pressure vessels
Professional engineering, OEM & branding support
FAQ – 1000L Fermenters
Q: Can I carbonate in the 1000L tank directly?
A: Yes. It’s pressure-rated and compatible with inline or in-tank carbonation.
Q: What’s the insulation thickness for low-temperature fermentation?
A: The tank uses 100mm thick PU foam insulation for optimal temperature retention.
Q: Can I use this fermenter for sours or mixed fermentation?
A: Yes. The sanitary internal finish allows flexible fermentation profiles with easy CIP.
Q: How is the tank shipped?
A: All tanks are crated, wrapped, and can be shipped via sea or air freight globally.
